CATALOG NUMBER:

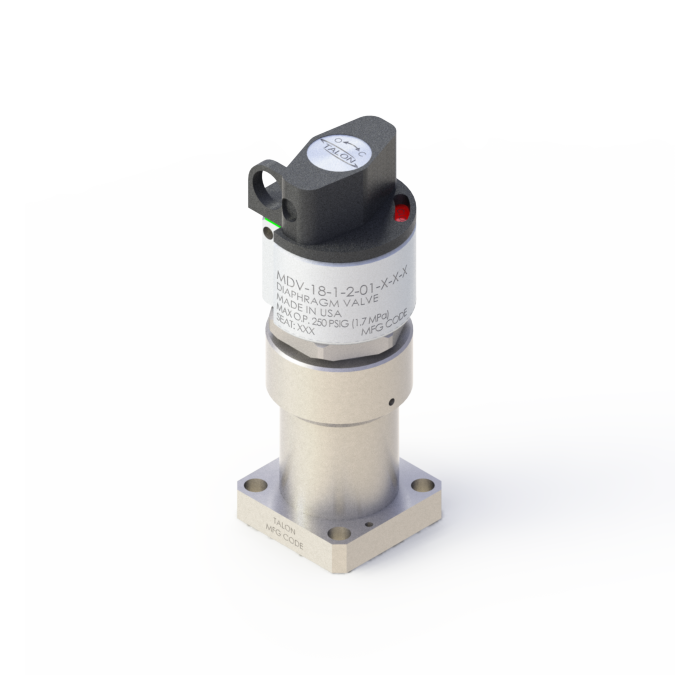

MDV-18-1-2-01-F-M-H
Modular Diaphragm Valve, 1.125" C-Seal, 2 Ports, Manually Operated, PFA / ASTM D3307, Type II, Nickel 400, High Purity
Operation Pressure
Vacuum to 150 PSIG
Operating Temperature
-15F to 300F (-10C to 150C)
Base Size
1.125"
Seal Type
C-Seal
Number of Ports
2 Ports
Body Material
Nickel 400
Purity Level
High Purity
Seat Material
PFA/ASTM D3307, Type II
Actuator Features
1/4 Turn
Diaphragm Material
Elgiloy
Flow Coefficient
0.3 Cv
Wetted Surface Finish
10 Ra
Cleaning
Ultrasonic Washed
Actuation Type
Manually Operated
Burst Pressure
4500 PSIG
Actuation Pressure
65-125 PSIG
Description / MDV-18-1-2-01-F-M-H
Ichor Systems manufactures a full line of Conventional, Modular Diaphragm Valves, Modular Metering Valves and Check Valves that are engineered to meet or exceed all industry standards in performance and purity. Our Conventional Diaphragm Valve (CDV) series provides outstanding reliability and value for conventional mounting systems, and our Modular Diaphragm Valve (MDV) series is engineered for modular, surface mount systems. All of our valves are engineered to meet SEMI specifications, provide outstanding reliability and performance and are compatible with all competitive systems in the marketplace. Customer must ensure parts chosen are appropriate components for their safe performance, taking into account material compatibility, operating conditions, proper installation, etc. of gas/fluid delivery system. Contact Ichor Sales for custom options, pricing, and delivery.
