CATALOG NUMBER:

TMX-24-04-S

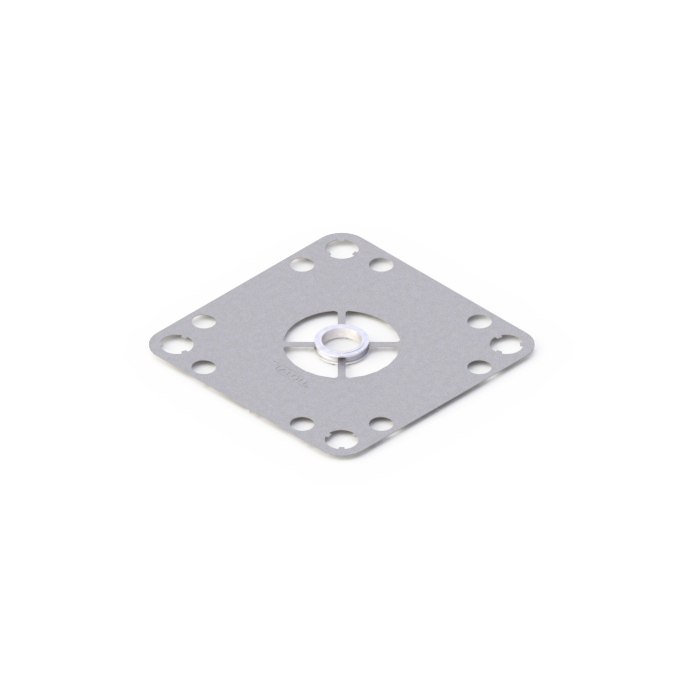

TMX, 1.500" C-Seal, 1 Port, 316L SST SEMI F20 VIM/VAR
Base Size and Seal Type
1.500" C-Seal
Configuration
1 Port
Seal Material
316L SST SEMI F20 VIM/VAR
Wetted Surface Finish
10 Ra
Cleaning
Ultrasonic Cleaned and Electropolished
ID
0.207"
Burst Pressure
15000 PSIG
Ichor Systems manufactures the TMX C-Seal, representing an upgrade to competitive designs. Seal performance and reliability are vital features of any gas delivery system. The TMX C-Seal has field-proven success rates for first-time sealing that beat the competition, which translates into improvements in efficiency and productivity for you. The TMX C-Seal is offered in 1.125" and standard flow to 1.50" high flow configurations. Customer must ensure parts chosen are appropriate components for their safe performance, taking into account material compatibility, operating conditions, proper installation, etc. of gas/fluid delivery system. Contact Ichor Sales for custom options, pricing, and delivery.
