CATALOG NUMBER:
CDV4K-FSFSFSFS-05KSS

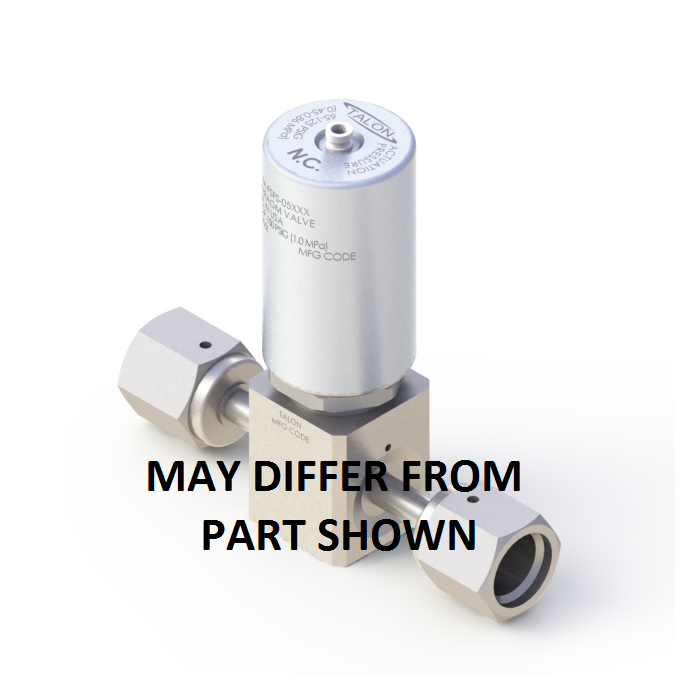

CDV: 1/4" 4-Port Valve (1/2-3/4), Female Face Seal, Swivel, Female Face Seal, Swivel, Female Face Seal, Swivel, Female Face Seal, Swivel, Pneumatic N.C. Integrated Fitting, PCTFE (Kel-F), 316L SST SEMI F20, Standard Finish
Operation Pressure
Vacuum to 150 PSIG
Port Configuration
4-Port Valve (1/2-3/4)
Connection 1 Type
Female Face Seal, Swivel
Connection 2 Type
Female Face Seal, Swivel
Connection 3 Type
Female Face Seal, Swivel
Connection 4 Type
Female Face Seal, Swivel
Operating Temperature
-40F to 150F (-40C to 66C)
Body Material
316L SST SEMI F20
Purity Level
Standard Finish
Seat Material
PCTFE (Kel-F)
Actuator Features
1/8" Quick Disconnect
Diaphragm Material
Elgiloy
Flow Coefficient
0.3 Cv
Wetted Surface Finish
16 Ra
Cleaning
Ultrasonic Cleaned
Actuation Type
Pneumatic N.C. Integrated Fitting
Burst Pressure
4500 PSIG
Actuation Pressure
65 - 125 PSIG
Connection Size
1/4"
Description / CDV4K-FSFSFSFS-05KSS
Ichor Systems manufactures a full line of Conventional, Modular Diaphragm Valves, Modular Metering Valves and Check Valves that are engineered to meet or exceed all industry standards in performance and purity. Our Conventional Diaphragm Valve (CDV) series provides outstanding reliability and value for conventional mounting systems, and our Modular Diaphragm Valve (MDV) series is engineered for modular, surface mount systems. All of our valves are engineered to meet SEMI specifications, provide outstanding reliability and performance and are compatible with all competitive systems in the marketplace. Customer must ensure parts chosen are appropriate components for their safe performance, taking into account material compatibility, operating conditions, proper installation, etc. of gas/fluid delivery system. Contact Ichor Sales for custom options, pricing, and delivery.
