CATALOG NUMBER:

CDV4A-FSMV-01VAS

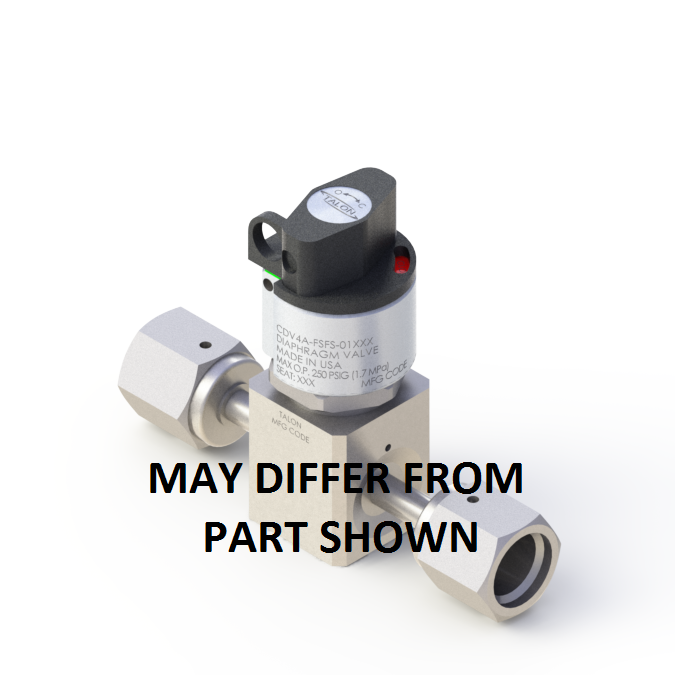

CDV: 1/4" 2-Port Valve (1-2), Female Face Seal, Swivel, Male Face Seal, Manually Operated, VESPEL , 316L, Standard Finish
Operation Pressure
Vacuum to 250 PSIG
Port Configuration
2-Port Valve (1-2)
Connection 1 Type
Female Face Seal, Swivel
Connection 2 Type
Male Face Seal
Operating Temperature
-15F to 300F (-10C to 150C)
Body Material
316L
Purity Level
Standard Finish
Seat Material
VESPEL
Actuator Features
1/4 Turn
Diaphragm Material
Elgiloy
Flow Coefficient
0.3 Cv
Wetted Surface Finish
16 Ra
Cleaning
Ultrasonic Cleaned
Actuation Type
Manually Operated
Burst Pressure
4500 PSIG
Connection Size
1/4"
Ichor Systems manufactures a full line of Conventional, Modular Diaphragm Valves, Modular Metering Valves and Check Valves that are engineered to meet or exceed all industry standards in performance and purity. Our Conventional Diaphragm Valve (CDV) series provides outstanding reliability and value for conventional mounting systems, and our Modular Diaphragm Valve (MDV) series is engineered for modular, surface mount systems. All of our valves are engineered to meet SEMI specifications, provide outstanding reliability and performance and are compatible with all competitive systems in the marketplace. Customer must ensure parts chosen are appropriate components for their safe performance, taking into account material compatibility, operating conditions, proper installation, etc. of gas/fluid delivery system. Contact Ichor Sales for custom options, pricing, and delivery.
Download Pdf Download Prints (Pdf)
