CATALOG NUMBER:
CDV4J-MSFSMSMS-06PHS

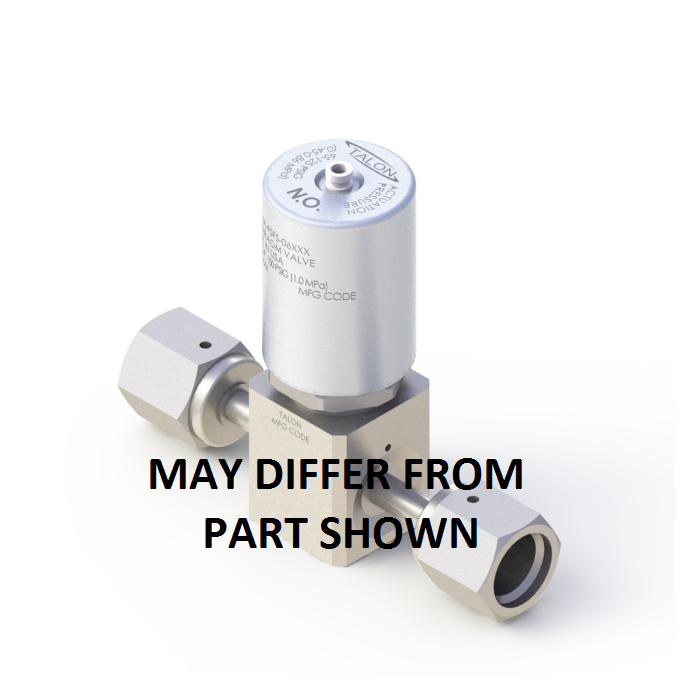

CDV: 1/4" 4-Port Valve (1-2/3/4), Male Face Seal, Swivel, Female Face Seal, Swivel, Male Face Seal, Swivel, Male Face Seal, Swivel, Pneumatic N.O. Integrated Fitting, PEEK, Nickel Alloy C22, Standard Finish
Operation Pressure
Vacuum to 150 PSIG
Port Configuration
4-Port Valve (1-2/3/4)
Connection 1 Type
Male Face Seal, Swivel
Connection 2 Type
Female Face Seal, Swivel
Connection 3 Type
Male Face Seal, Swivel
Connection 4 Type
Male Face Seal, Swivel
Operating Temperature
-40F to 300F (-40C to 150C)
Body Material
Nickel Alloy C22
Purity Level
Standard Finish
Seat Material
PEEK
Actuator Features
1/8" Quick Disconnect
Diaphragm Material
Elgiloy
Flow Coefficient
0.3 Cv
Wetted Surface Finish
16 Ra
Cleaning
Ultrasonic Cleaned
Actuation Type
Pneumatic N.O. Integrated Fitting
Burst Pressure
4500 PSIG
Actuation Pressure
65 - 125 PSIG
Connection Size
1/4"
Description / CDV4J-MSFSMSMS-06PHS
Ichor Systems manufactures a full line of Conventional, Modular Diaphragm Valves, Modular Metering Valves and Check Valves that are engineered to meet or exceed all industry standards in performance and purity. Our Conventional Diaphragm Valve (CDV) series provides outstanding reliability and value for conventional mounting systems, and our Modular Diaphragm Valve (MDV) series is engineered for modular, surface mount systems. All of our valves are engineered to meet SEMI specifications, provide outstanding reliability and performance and are compatible with all competitive systems in the marketplace. Customer must ensure parts chosen are appropriate components for their safe performance, taking into account material compatibility, operating conditions, proper installation, etc. of gas/fluid delivery system. Contact Ichor Sales for custom options, pricing, and delivery.
